Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Kích thước tủ: | WxDxH=750*650*1900mm (Có thể tùy chỉnh) | Không gian bên trong: | Giá đỡ tiêu chuẩn 19'', không gian 36U |
|---|---|---|---|
| Vật liệu: | Tấm mạ kẽm | Công suất điện: | 12kW đến 18kW |
| Mô-đun chỉnh lưu: | 4 ~ 6 mô-đun 3kW | Phương pháp làm mát: | Máy điều hòa không khí hoặc hệ thống quạt bắt buộc |
| cấp IP: | IP65 | Bao bì: | Vỏ gỗ |
| Làm nổi bật: | 12kW telecom power cabinet,18kW power distribution cabinet,telecom power monitoring system |
||

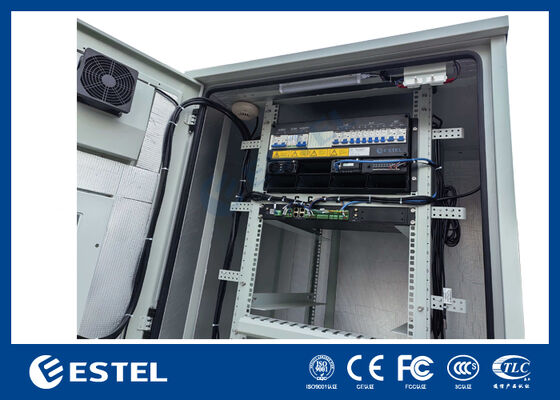

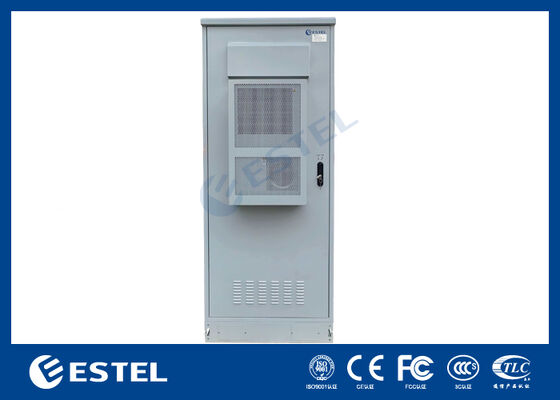

12kW to 18kW Telecom Power Cabinet with Power Distribution and Monitoring
1. Composition of ESTEL Telecom Power Cabinet
1) Metal sheet enclosure
2) Temperature control (air conditioner / heat exchanger / fans / heater)
3) Power system (rectifier power / solar power / battery back up / mains / diesel generator / inverter)
4) Power distribution
5) Cabling (cable entries / cable gland / sealing plate)
6) Installation accessories
2. Key Parameters of ESTEL Telecom Power Cabinet
This cabinet is equipped with IP65 enclosure, a cooling system, a 24kW telecom power system, and a monitoring unit. And the main key parameters are as following.
| Sub-system | Parameter | Value |
| Enclosure | Dimensions |
750*650*1900, 36U |
| Material | Galvanized steel sheet | |
| Painting | Polyester powder coating | |
| Color | Customized | |
| Cooling | Air Conditioner | 1500W (Optional: Heat exchanger) |
| Fans | Fan with controller | |
| Working Voltage | 220VAC, 50Hz | |
| Power | Input Voltage | 220VAC, 1-Phase or 380VAC 3-Phase |
| Output Voltage | -43~-58VDC, rated value: -53.5VDC |
|
| Energy Resource | Mains / Solar / DG / Battery | |
| Power | 12kW ~ 18kW | |
| Hybrid Power | Support | |
| EMS | Size | 1U |
| Working Voltage | 220VAC or DC48V | |
| Ports | RS485, Dry contacts, AI ports, 4G module (Optional) | |
| Communication | SNMP | |
| Packaging | Assembled cabinet in wooden case | |
3. Features of ESTEL Telecom Power Cabinet
4. Why choose ESTEL’s Power Cabinets
5. Frequently asked Questions (FAQ)
1) How to get an offer from ESTEL for my project?
Re: Customer please provide your technical requirements to our ESTEL, and ESTEL technical team will work out a solution for you, with detailed cabinet size, power system configuration, and price breakdown.
2) Do ESTEL participate in oversea bidding project?
Re: ESTEL provide technical analysis and design to help client to response to a bidding project, ESTEL will provide necessary technical and commercial documents to client for supporting client’s bidding submission. Client can totally feel free to ask ESTEL for long term support for the bidding submission, bidding clarification, bidding update submission process.
3) What kinds of warranty and after-sales service can ESTEL provide?
Re: ESTEL provide life-time after-sales service to all clients. ESTEL has a skillful after-sales team with different languages, to response client’s within 12hrs, no matter it is a product malfunction, consultation, or remote technical support.
