Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Kích cỡ: | 1400*750*750mm(C*W*D) | Vật liệu: | tấm mạ kẽm 1,2mm |
|---|---|---|---|
| Không gian: | 24U 19'' | cửa: | 2 cửa trước và sau |
| phương pháp làm mát: | Điều hòa không khí | cấp IP: | IP55 |
| Cài đặt: | Lắp đặt sàn | bưu kiện: | hộp gỗ |
| Làm nổi bật: | 24U outdoor telecom rectifier cabinet,18kw DC power distribution cabinet,telecom power system with warranty |
||

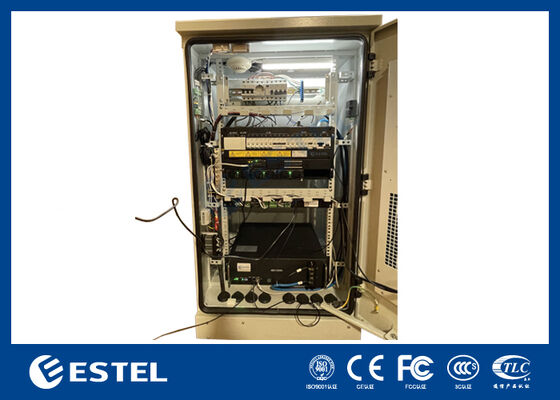

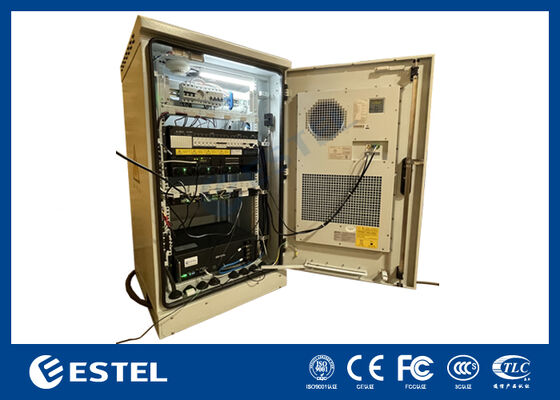

24U Outdoor Telecom Rectifier Cabinet with 18kw DC Power Distribution
Product Overview
The ET-series 24U telecom power cabinet is an outdoor cabinet which can protect customer’s equipments from damage and extreme weather conditions. Lead-acid battery and 24U telecom equipments can be accomodated inside the cabinet. The cabinet can provide power for active telecom equipments and passive telecom equipment at the same time. With a DC48V rectifier system, the cabinet is able to provide 18kw power distribution for telecom equipment inside the cabinet and protection, while controller can monitor and management equipment situations and events online.
The cabinet Integrated provides a high-density, carrier-class power platform engineered to deliver uninterrupted DC power for telecommunications central offices, mid-to-large data centers, and industrial facilities. Operating from a three-phase 380V AC input (with no internal circuit breaker), it supplies a precisely regulated DC output adjustable between –43V and –58V, typically set at –53.5V. With a maximum output of 18kW, the unit achieves conversion efficiencies exceeding 96% across most of its operating range, significantly reducing energy consumption and the associated costs of cooling.
Features
● High protection grade: IP55
● Strong anti-theft ability, embedded door, inner hinges, three-point lock, supporting additional padlock
● Adopt highly efficient cooling unit: air conditioner
● Comprehensive protection optional: door sensor, smoke sensor, water sensor, temperature and humidity sensor, etc.
● Support remote management, improve security and minimize customer’s operation cost
Specification
| Configuration | Item | Technical Parameter | |
| Cabinet | Type | Outdoor telecom cabinet | |
| Protection Level | IP55 | ||
| External Dimension | H1400mm×W750mm×D750mm ( can be customized ) | ||
| Internal Space | 1*19 inch 24U | ||
| Material |
Material: Galvanized sheet, single layer, with 20mm PEF insulation Material thickness: 1.2mm, Load-bearing components and base thickness: 2.0mm |
||
| Insulation | 20mm PEF | ||
| Coating | Polyester powder coating | ||
| Color | RAL7035 | ||
| Lock | Anti-theft three-point locking system | ||
| Hinge | Inner hinge | ||
| Installation | Floor mounted | ||
| Cable Routing | Cable in and out from the bottom of cabinet | ||
| Maintenance | One left door, one right door, front maintenance | ||
| Cooling | Air Conditioner | 220VAC, 50Hz, 1000W | |
| FSU |
Model: PM5000, 19" 1U Sensors: 1* door sensor 1* smoke sensor 1* water sensor 1* temperature sensor |
||
| DC Power Distribution |

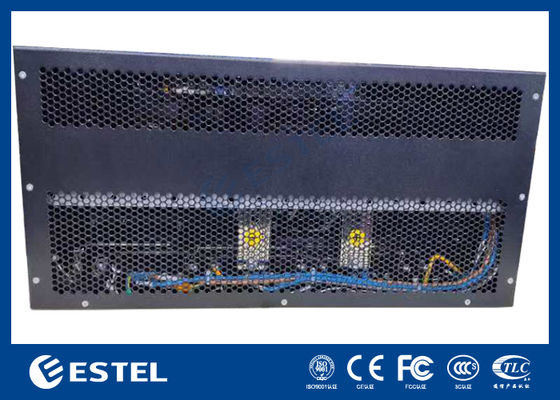

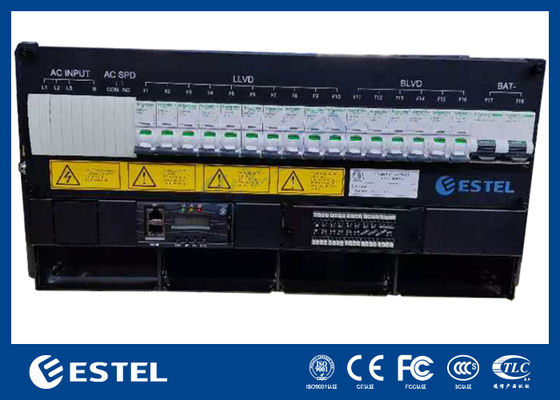

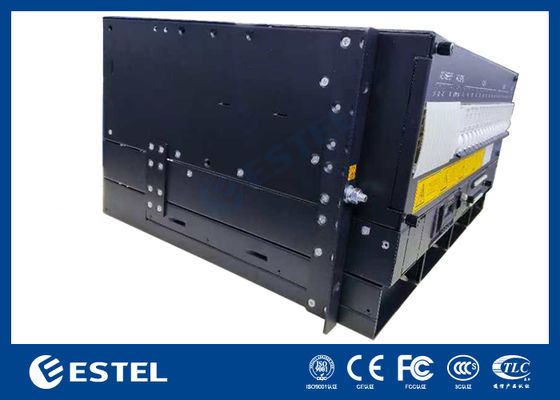

1*18kw DC48V rectifier system, 5U Maximum capacity: 18kw(6*3kw, N+1 redundancy) |
||
| Battery | 1*DC48V 100AH lithium battery | ||
| LED Lamp | 220VAC,50Hz, used for illumination in the cabinet | ||
| Environment | Working Temperature | -40℃ ~+55℃ (+Solar Radiation) | |
| Storage Temperature | -40℃~+70℃ | ||
| Working Humidity | 5%~95%(No condensation) | ||
| Working Altitude | 0~4000 meters | ||
