Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Phạm vi điện áp đầu vào: | Tải 50%:115-300VAC;tải 100%:160-280VAC | Phạm vi tần số đầu vào: | 40Hz-70Hz |
|---|---|---|---|
| Hệ số công suất: | ≥0,99 (tải 100%) | Độ chính xác ổn định điện áp: | ± 1% |
| Điện áp đầu ra: | 208VAC @220VAC@230VAC@240VAC | Tần số đầu ra: | 50Hz±0,25Hz,60Hz±0,25Hz |
| Làm nổi bật: | 1-3kVA UPS single-phase input,UPS single-phase output power supply,uninterruptible power supply with warranty |
||
Uninterruptible Power Supply(UPS)
Product Overview
ESTEL 1-3kVA UPS series is specially designed for server applications in small and medium-sized enterprises.It supports rack installation mode and tower installation mode.Featuring an online double-conversion design and DSP digital technology,it delivers pure sine wave output with exceptional performance and a high-end appearance,it presents the perfect integration of cutting-edge technology and traditional products.
Product Features
| UPS Capacity | 1K | 1KL | 2K | 2KL | 3K | 3KL | ||
| Rated Output Capacity | 1kVA/0.8kW | 2KVA/1.6kW | 3KVA/2.4kW | |||||
|
AC Input |
Input Voltage Range | 50%load:115-300VAC;100%load:160-280VAC | ||||||
| Input Frequency Range | 40Hz-70Hz | |||||||
| Power Factor | ≥0.99(100%load) | |||||||
|
Battery lnput |
Battery Pack Voltage | 24V | 36V | 48V | 72V | 72V | 96V | |
| Battery Mode | Built-in | External | Built-in | External | Built-in | External | ||
| Charging Voltage | 27.4VDC | 41.3VDC | 54.7VDC | 82.1VDC | 82.1VDC | 109.4VDC | ||
| Charging Current | 1A | 6A(max) | 1A | 6A(max) | 1A | 6A(max) | ||
| Battery Charging Time | Built-in batteries:5hrs to 90%;External batteries:depends on battery pack capacity | |||||||
|
AC Output |
Voltage Stabilization Accuracy | ±1% | ||||||
| Output Voltage | 208VAC @220VAC@230VAC@240VAC | |||||||
| Output Frequency | 50Hz±0.25Hz,60Hz±0.25Hz | |||||||
| Waveform | Linear load:Sine wave,THD<3%;Non-linear load:Sine wave,THD<8%; | |||||||
| Output Power Factor | 0.8 | |||||||
| Overload Capability | AC Mode | 100%-110%:10min;110%-130%:1min;>130%:1sec | ||||||
| Battery Mode | 100%-110%:30sec;110%-130%:10sec;>130%:1sec | |||||||
| Output Current Peak Coeficient | 3:1 | |||||||
| Inverter Bypass | 4ms(Typical) | |||||||
| Mains and battery switch time | 0ms | |||||||
| Efficiency | AC Mode | 88% | 89% | 90% | ||||
| Battery Mode | 83% | 87% | 88% | |||||
| Communication and Monitoring |
RS232(can convert to RS485);Smart card slot(can expand with multiple monitoring modes,via SNMP,mobile phone text message,etc.) |
|||||||

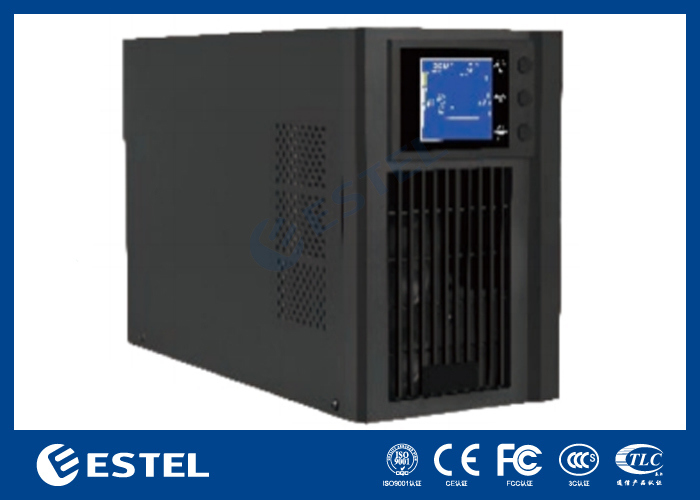

| Tower Type | Weight (kg) | 8 | 4.5 | 16.5 | 6.8 | 28 | 11.5 | |
| Size(D×W×H)(mm) | 280×145×225 | 400×145×225 | 433×190×318 | |||||
|

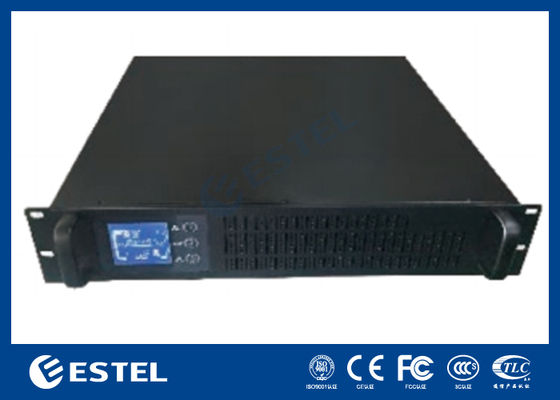

Rack Type |
Weight(kg) | 10.5 | 7 | 18 | 8 | 24.5 | 8.7 | |
|
Weight (kg) |
External battery type | 420×440×85 | 420×440×85 | 420×440×85 | ||||
| Built-in battery type | 420×440×85 | 590×440×85 | 590×440×85 | |||||
